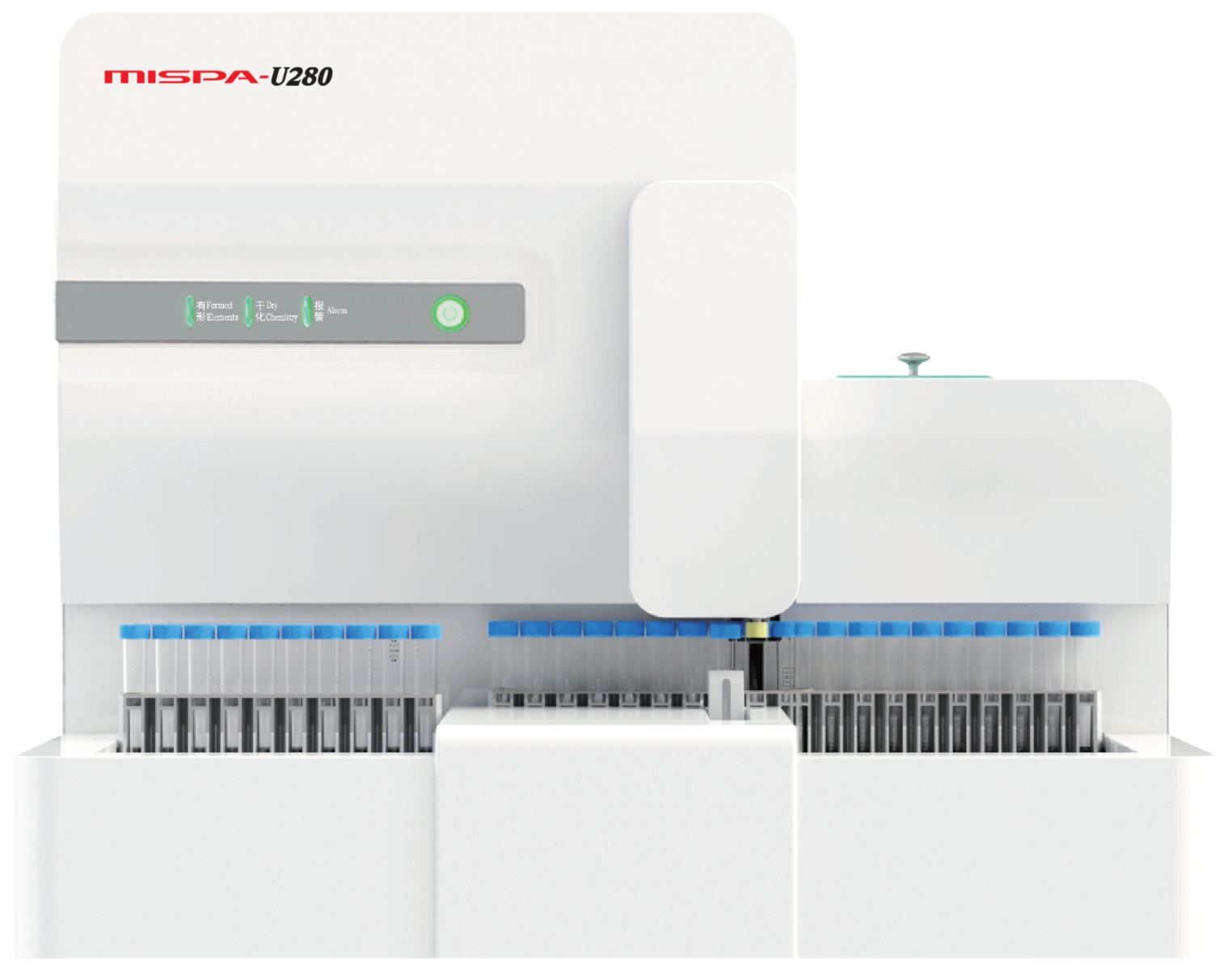

Mispa U280
Fully-Automated Urine Sediment Analyzer
Overview
Mispa U280 is a Fully automated and integrated Urine Analyzer, which can analyze urine sample in totality. Mispa U280 analyses urine for Physical/ Chemical and microscopic parameters. It is based on various principles including chemical strip method, imaging and Artificial Intelligence for particle identification.
Mispa U280 is a Fully automated and integrated Urine Analyzer, which can analyze urine sample in totality. Mispa U280 analyses urine for Physical/ Chemical and microscopic parameters. It is based on various principles including chemical strip method, imaging and Artificial Intelligence for particle identification.
The throughput of the equipment is 60-80 samples for formed elements and approx. 220 samples for chemistry per hour. Mispa U280 is simulation of gold standard manual operation by the “plane microscope camera + AI recognition” method, 5MP camera guarantees the definition of images and realizes more accurate and efficient recognition. This not only ensures reliable identification and pre classification of most formed elements but also makes images available for further review and teaching purposes. Dry chemistry analysis by Mispa U280 ensures no cross contamination between adjacent strips.
Features
Physical
Specific gravity
Conductivity
Turbidity
Color
Safety and Maintenance Protocol of Mispa U280
Periodic maintenance of the unit is to be performed by the service engineer of Agappe.
Mispa U280 is for indoor use only.
The Installed site should be free of dust and away from direct sun.
The site should be free of corrosive and inflammable gas.
The bearing or the ground should be free from vibration
Cover the instrument with dust cover when not in use.
The environment should not have high humidity levels
Formed Elements
Multilayer Shooting
Mispa U280 imaging system takes 8-layer images of every element and hence makes available the inner complexities of the element. Thus, ensuring the identification to the best quality.
Traceable test results
Images are available to make sure the user can revisit them as per convenience and all reports are traceable.
powerful Database
AI engine is the most updated one, and huge amount of data is used to train the AI engine
Gold Standard
Mispa U280 is basically automated simulation of Gold Standard method i.e. Microscopy.
Compact
Mispa U280 is compact in size and consumes very less space .
Comprehensive Analysis
Four physical indexes (standard configuration)
Comprehensive formed element substances
Accurate
High-definition morphology images backed with powerful AI
Characteristic | Details |
Dimensions | W778 x D713 x H650 mm |
Weight | 120 Kg (approx..) |
PC Operating System | Inbuilt |
Power Supply | 220 V +-10, 50/ Hz |
PC interface | RS 232 Port |
Technical Specification of Mispa i60
Characteristic | Details |
Sample Volume | 3 ml |
Reporting Mode Sample Treatment | Semi quantitative//microliter & /HPF Automated Mixing & flow cell filling and emptying |
Counting Cell | High precision constant flow counting cell |
Detectability | 95% or higher |
Accuracy | 98 % or higher |
Features:
Throughput of 60-80 samples/hour for formed elements and up to 220 for dry chemistry mode
Dry chemistry for chemistry analysis
Multilayer Shooting
Traceable test results
Powerful database
Gold Standard
Compact (best in class)
Comprehensive Analysis
Advanced user-friendly software
Calibration & QC program
Technology:
Mispa U280 is a Fully automated and integrated Urine Analyzer, which can analyze urine sample in totality. Mispa U280 analyses urine for Physical/ Chemical and microscopic parameters. It is based on various principles including chemical strip method, imaging and Artificial Intelligence for particle identification.
The throughput of the equipment is 60-80 samples for formed elements and approx. 220 samples for chemistry per hour. Mispa U280 is simulation of gold standard manual operation by the “plane microscope camera + AI recognition” method, 5MP camera guarantees the definition of images and realizes more accurate and efficient recognition. This not only ensures reliable identification and pre classification of most formed elements but also makes images available for further review and teaching purposes. Dry chemistry analysis by Mispa U280 ensures no cross contamination between adjacent strips.
