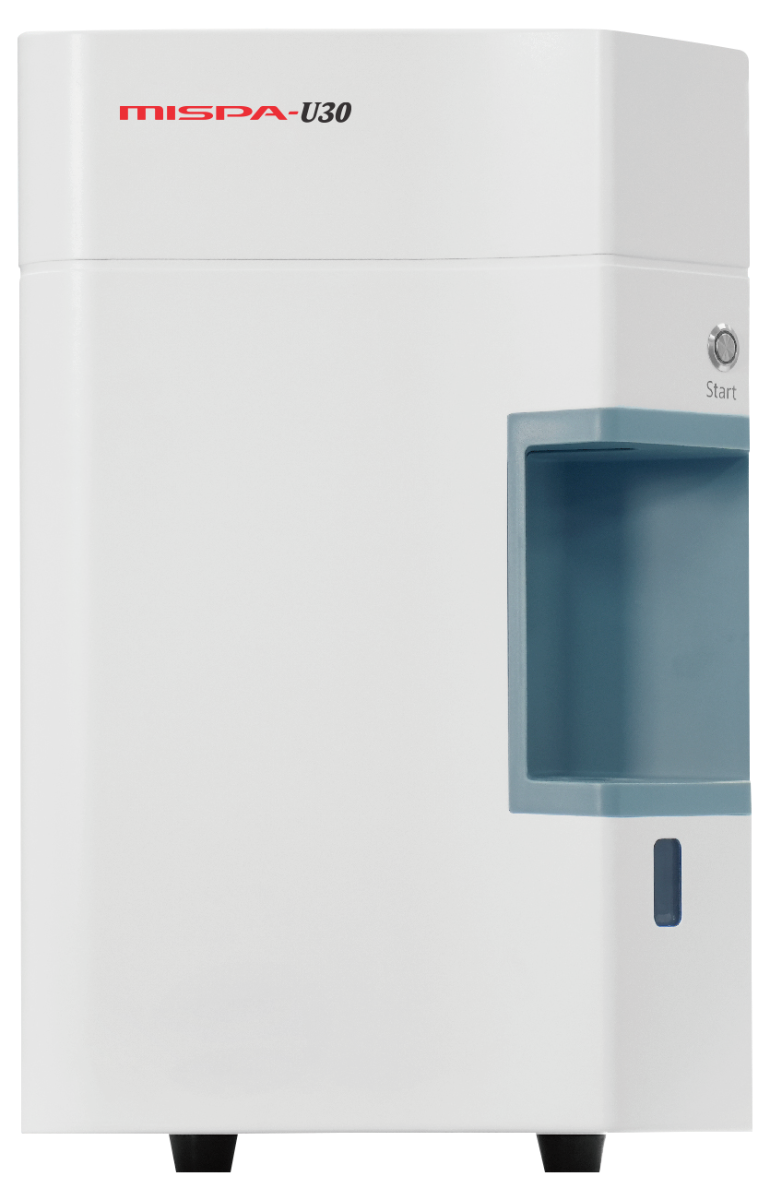

Mispa U30
Semi-Automated Urine Sediment Analyzer
Overview
Mispa U30 is a Semiautomated Urine Sediment Analyzer, which is based on imaging and Artificial Intelligence for particle identification. The throughput of the equipment is from 30 sample per hour. Mispa U30 is simulation of gold standard manual operation by the “plane microscope camera + AI recognition” method, 5MP camera guarantees the definition of images and realizes more accurate and efficient recognition. This not only ensures reliable identification and pre classification of most formed elements but also makes images available for further review and teaching purposes.
Safety and Maintenance Protocol of Mispa U30
Periodic maintenance of the unit is to be performed by the service engineer of Agappe.
Mispa U30 is for indoor use only.
The Installed site should be free of dust and away from direct sun.
The site should be free of corrosive and inflammable gas.
The bearing or the ground should be free from vibration
Cover the instrument with dust cover when not in use.
The environment should not have high humidity levels
Mispa U30 is a Semiautomated Urine Sediment Analyzer, which is based on imaging and Artificial Intelligence for particle identification. The throughput of the equipment is from 30 sample per hour. Mispa U30 is simulation of gold standard manual operation by the “plane microscope camera + AI recognition” method, 5MP camera guarantees the definition of images and realizes more accurate and efficient recognition. This not only ensures reliable identification and pre classification of most formed elements but also makes images available for further review and teaching purposes.
Features
Multilayer Shooting
Mispa U30 imaging system takes 8-layer images of every element and hence makes available the inner complexities of the element. Thus, ensuring the identification to the best quality.
Traceable test results
Images are available to make sure the user can revisit them as per convenience and all reports are traceable.
powerful Database
AI engine is the most updated one, and huge amount of data is used to train the AI engine
Gold Standard
Mispa U30 is basically automated simulation of Gold Standard method i.e. Microscopy.
Compact
Mispa U30 is compact in size and consumes very less space .
Characteristic | Details |
Dimensions | W495 x D348 x H527 mm |
Weight | 20 Kg (approx..) |
PC Operating System | Inbuilt |
Power Supply | 220 V +-10, 50/ Hz |
PC interface | RS 232 Port |
Technical Specification of Mispa i60
Characteristic | Details |
Sample Volume | 2 ml |
Reporting Mode Sample Treatment | /microliter & /HPF Automated Mixing & flow cell filling and emptying |
Counting Cell | High precision constant flow counting cell |
Detectability | 95% or higher |
Accuracy | 98 % or higher |
Features:
Throughput of 30 samples/hour
Multilayer Shooting
Traceable test results
Powerful database
Gold Standard
Compact
Comprehensive Analysis
Advanced user-friendly software
Calibration & QC program
Technology;
Mispa U30 is a Semiautomated Urine Sediment Analyzer, which is based on imaging and Artificial Intelligence for particle identification. The throughput of the equipment is from 30 sample per hour. Mispa U30 is simulation of gold standard manual operation by the “plane microscope camera + AI recognition” method, 5MP camera guarantees the definition of images and realizes more accurate and efficient recognition. This not only ensures reliable identification and pre classification of most formed elements but also makes images available for further review and teaching purposes.
